Architecture

Carbon is software that runs a manufacturing business: what it buys, what it holds in stock, what it builds, what it ships, and whether the quality held up. Two separate apps do that. The ERP is the office app, where people quote, purchase, plan and invoice. The MES is the shop floor app, used on tablets next to the machines to run and record the actual work.

This page follows one journey. A user clicks a button, something is saved, other things happen because of it, and the screen updates. Everything else hangs off that spine. Part 1 and Part 2 are the ones to read in order; the rest stands on its own, so take it in any order you like.

Any term you might not know is marked with a number the first time it appears, like this: Postgres [17]. The number links to a one-line definition in the Glossary at the end. Nothing is assumed.

Part 1: The map

Carbon is a monorepo [10]: one Git repository holding several applications and about twenty-five shared libraries, built together by pnpm workspaces and Turborepo [25]. Two of those applications are the products people log into, the ERP and the MES. Everything else exists to serve them.

The center of gravity is a single Postgres [17] database. Almost every arrow in this doc eventually points at it. Unusually for a web app, a lot of logic that you might expect to live in application code lives inside the database instead: permissions, computed totals, and the "something changed" notifications. That is the single most important thing to understand about Carbon, and Part 3 explains why.

Color is used sparingly in these diagrams, and it means the same thing in all of them: blue is our own apps, pink is stored state, amber is work that happens in the background. Everything else is left plain on purpose.

The five things worth taking from that picture:

1. The ERP app is the hub. It serves pages, and it is also where background jobs execute. Inngest [5] does not run our code on its own machines; it calls back into the ERP container: it is a timer and a queue that POSTs to /api/inngest saying "run this job now", and our own code does the work. See Part 4.
2. Most database access is not raw SQL. It goes through PostgREST [18], a service that turns client.from("purchaseOrder").select(...) into a SQL query. We use the supabase-js library to talk to it.
3. The database enforces permissions itself. Even if application code forgets a filter, Postgres will not return another company's rows. (Except on one specific escape hatch: see Part 3.)
4. Writes on the right tables cause events automatically. Around ninety tables opt in to a database trigger, and where a company has subscribed to one, search indexing, webhooks, audit logs and customer automations all happen without the code that did the write knowing about them.
5. The Rust service is optional. It turns uploaded CAD files into 3D models the browser can show, and works out the order parts come apart in for assembly instructions. Carbon runs fine without it.

Part 2: Follow one click all the way down

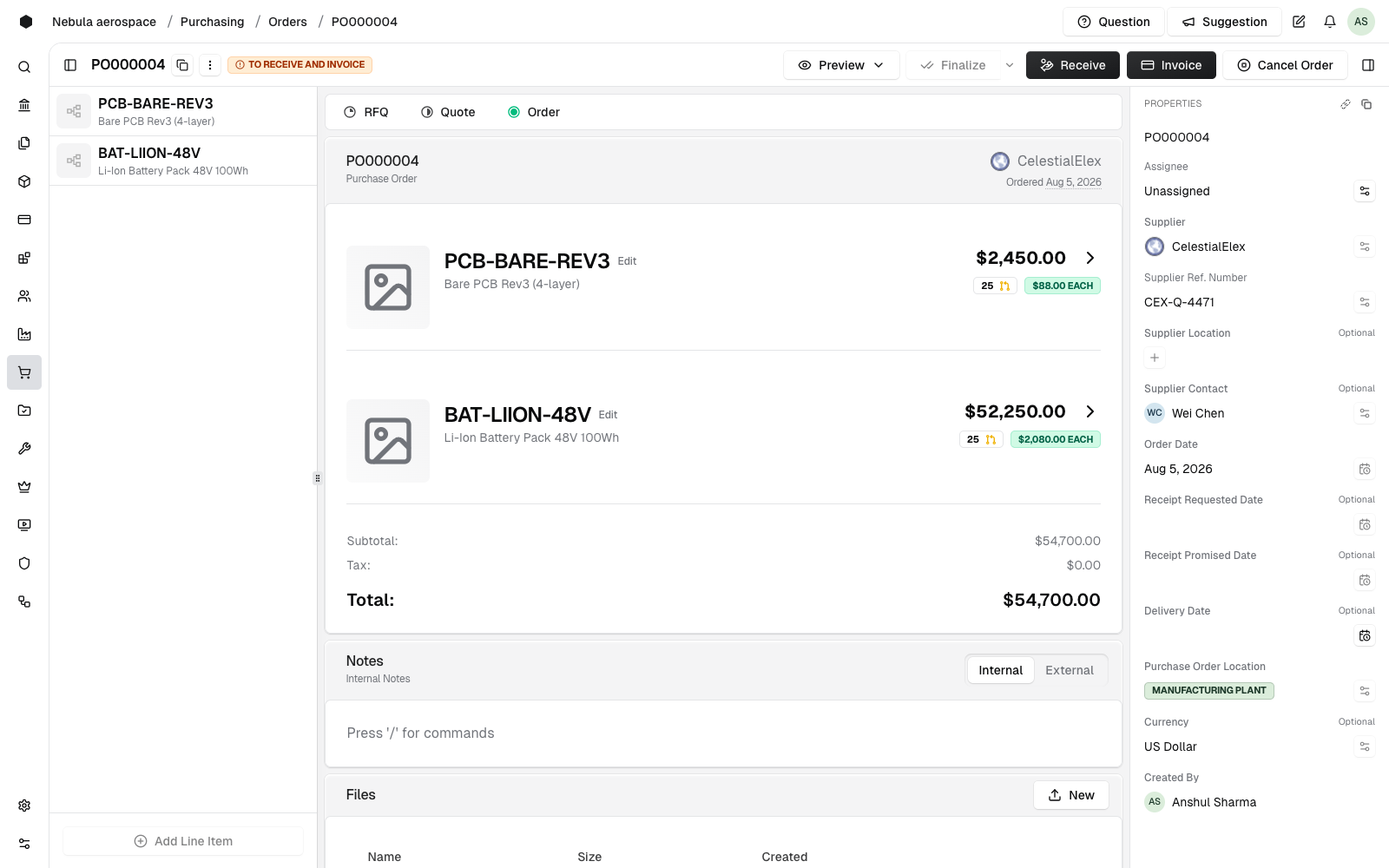

Here is the whole system in one story: a buyer creates a Purchase Order.

Pick this one apart and you have seen every layer: a form, validation, a permission check, a database write, logic living in Postgres, a background side effect, and the screen updating. Every other feature in Carbon is a variation on it.

The short version

Notice the shape: the user's request finishes as soon as the row is written. The search indexing happens afterwards, on its own, and nobody waited for it.

The same story, with real files

Every path below is real. Open them in your editor as you read.

1. The button. It is a link, not a submit button.

apps/erp/app/modules/purchasing/ui/PurchaseOrder/PurchaseOrdersTable.tsx:502

primaryAction={
  permissions.can("create", "purchasing") && (
    <New label={t`Purchase Order`} to={path.to.newPurchaseOrder} />
  )
}

Two conventions in three lines. permissions.can(...) hides UI the user is not allowed to use; this is cosmetic only, the real check happens on the server. And the URL comes from path.to.*, a single registry of every URL in the app (apps/erp/app/utils/path.ts, ~2,200 lines). Never hardcode a URL string.

2. The form. apps/erp/app/modules/purchasing/ui/PurchaseOrder/PurchaseOrderForm.tsx:116

<ValidatedForm
  method="post"
  validator={purchaseOrderValidator}
  defaultValues={initialValues}
>

ValidatedForm is our wrapper around a plain HTML form. You hand it a schema; it blocks submission and shows inline field errors if the data is wrong, and it re-displays server errors in the same place. Fields (<Input name="...">, <Supplier name="...">) come from ~/components/Form, which re-exports generic inputs plus about ninety Carbon-specific pickers (Customer, Supplier, Item, Location, Currency…).

3. The schema. apps/erp/app/modules/purchasing/purchasing.models.ts:127

export const purchaseOrderValidator = z.object({
  id: zfd.text(z.string().optional()),
  purchaseOrderId: zfd.text(z.string().optional()),
  purchaseOrderType: z.enum(purchaseOrderTypeType, {
    /* ... */
  }),
  supplierId: z.string().min(1, { message: "Supplier is required" }),
  locationId: zfd.text(z.string().optional()),
});

zod [28] is a schema library: you describe the shape of the data once, and get both runtime validation and a TypeScript type from it. zfd (zod-form-data) handles the fact that HTML forms send everything as strings: zfd.text() turns an empty field into undefined rather than "".

One schema, used in three places: the browser validates against it, the server re-validates against it, and the service function's argument type is derived from it. That is why the three can never drift apart.

4. The route. apps/erp/app/routes/x+/purchase-order+/new.tsx:29

export async function action({ request }: ActionFunctionArgs) {
  assertIsPost(request);
  const { client, companyId, companyGroupId, userId } =
    await requirePermissions(request, {
      create: "purchasing",
      bypassRls: true,
    });

  const formData = await request.formData();
  const validation = await validator(newPurchaseOrderValidator).validate(
    formData
  );
  if (validation.error) return validationError(validation.error);

  const result = await insertPurchaseOrder(client, {
    ...validation.data,
    companyId,
    companyGroupId,
    createdBy: userId,
    customFields: setCustomFields(formData),
  });

  if (result.error || !result.data) {
    throw redirect(
      path.to.purchaseOrders,
      await flash(
        request,
        error(result.error, "Failed to insert purchase order")
      )
    );
  }
  throw redirect(path.to.purchaseOrder(result.data.id));
}

This is the shape of every write in Carbon:

assert the method → check permissions → validate → call a service → redirect.

A file under apps/erp/app/routes/ can export up to three things that matter here:

loader and action are stripped out of the JavaScript sent to the browser, so it is safe to use secrets and database clients in them. This is the same idea as Next.js server components or a traditional controller; the file just happens to hold both halves.

5. The service function. apps/erp/app/modules/purchasing/purchasing.service.ts:1393

Routes never talk to the database directly. They call a service function: a plain function whose first argument is a database client and which returns Supabase's raw { data, error } without throwing.

const seq = await client.rpc("get_next_sequence", {
  sequence_name: "purchaseOrder",
  company_id: input.companyId,
});

const order = await client
  .from("purchaseOrder")
  .insert({
    purchaseOrderId,
    supplierId: input.supplierId,
    status: "Draft",
    companyId: input.companyId,
    createdBy: input.createdBy /* ... */,
  })
  .select("id, purchaseOrderId")
  .single();

const [delivery, payment] = await Promise.all([
  client.from("purchaseOrderDelivery").insert({
    /* ... */
  }),
  client.from("purchaseOrderPayment").insert({
    /* ... */
  }),
]);

if (delivery.error || payment.error) {
  await deletePurchaseOrder(client, orderId); // manual undo
  return { data: null, error: delivery.error ?? payment.error };
}

That last block is the honest, ugly truth about supabase-js: three .insert() calls are three separate HTTP requests, so they are not a transaction. If the second fails, the first is already committed, and we have to undo it by hand. When you need a real transaction, use Kysely [6] instead. See Part 3.3.

6. What Postgres does by itself. Two things happened that no TypeScript asked for.

The order number. client.rpc("get_next_sequence", ...) calls an RPC [21], a function that lives inside the database (packages/database/supabase/migrations/20241115101526_rpc-get-next-sequence.sql). It reads and bumps a counter and formats the result (PO + zero-padding + optional date tokens) in a single atomic step. Doing this in application code would hand two simultaneous buyers the same number.

The event. Every insert into purchaseOrder fires a Postgres trigger, a function the database runs automatically on a write. It drops a small JSON message onto a queue that lives in a database table. Nothing in the route knows this is happening. Part 4 follows that message to the end.

7. The screen updates. The action ends with throw redirect(...). React Router follows the redirect and runs the destination's loader, which re-reads from the database and renders the finished page. There is no client-side cache to invalidate and no "add the new row to the list in state" code. After any non-GET submission, React Router automatically re-runs the loaders for the current page. That is the whole refresh mechanism.

Part 3: Layer by layer

3.1 The browser and the route file

The apps are React Router v7 in framework mode: server-rendered React, where a single file owns both a URL's data-loading and its UI. (It is not Remix and not Next.js, though it is the direct descendant of Remix.) Vite [27] builds it; Tailwind v4 styles it.

Routes are files on disk. apps/erp/app/routes/ has about 1,400 of them, and the folder structure is the URL structure, with a few conventions:

Top-level namespaces: x+ is the logged-in app (66 module folders), api+ holds JSON endpoints with no UI, _public+ is login/logout, and share+ is the unauthenticated surface: links you email to a customer to view a quote.

Getting data in. A loader runs on the server, calls service functions, and returns plain JSON; the component reads it with useLoaderData<typeof loader>(). Data shared by the whole app (the current user, their company, their permissions, feature flags) is loaded once in apps/erp/app/routes/x+/_layout.tsx (about eighteen parallel queries) and read anywhere via hooks like useUser(), usePermissions(), useCompanySettings(). Those hooks read the layout route's loader data, not a React context.

Getting data out. Forms post to an action, as in Part 2. For writes that should not navigate (reordering rows, an inline edit, a delete button), use useFetcher(), which posts in the background and still triggers the automatic revalidation.

Shared UI. Look in two places before writing a component:

• packages/react/: the design system (@carbon/react). Buttons, modals, comboboxes, menus, layout primitives. Built on Radix UI [19] and Tailwind.
• apps/erp/app/components/: app-level pieces. The big one is components/Table/Table.tsx, a single generic table (~1,500 lines, built on TanStack Table) that every list screen uses. It handles sorting, filtering, pagination, saved views, CSV import/export, column visibility and inline editing. You pass data, columns and count; the server does the paging via URL search params.

Client state is deliberately small. Reference lists that everything needs (items, customers, suppliers, people) live in nanostores [13] and are kept fresh by RealtimeDataProvider. Ephemeral UI state (is the search modal open) uses zustand [29]. User and permission data lives in neither; it comes from the route loader.

Translations use Lingui [7]: wrap a string in t`...` or <Trans>, run pnpm lingui:extract, and translators fill in thirteen locale files.

MES is the same stack, simpler. No modules/ folder: services sit flat in apps/mes/app/services/, all validators in one models.ts, routes are one flat level, and the UI is built for gloved hands on a tablet.

3.2 The gate: who is allowed to do what

Every server-side entry point in Carbon starts with the same call. There are about 1,600 of them.

const { client, companyId, userId } = await requirePermissions(request, {
  create: "purchasing",
});

Defined at packages/auth/src/services/auth.server.ts:195. It does four jobs at once:

1. Identifies the caller. Either from the session cookie (a browser) or from a carbon-key header (our public API, which additionally gets rate-limited and scope-checked).
2. Loads their permissions. Permissions are stored as <module>_<action> keys such as purchasing_create or sales_view, each mapping to the list of companies where the user holds it. They are fetched by a Postgres function called get_claims and cached in Redis for an hour. They are not in the JWT.
3. Refuses if they lack it. Redirect to login if not signed in at all, or an "Access Denied" toast otherwise.
4. Hands back a database client already scoped to this user, plus their companyId and userId.

Multi-tenancy [12] is the reason for a lot of what follows: Carbon is one database serving many customer companies. Nearly every table has a companyId column and a composite primary key ("id", "companyId"). Which company you are acting as is read from your session cookie, never from the URL.

RLS (Row Level Security) [20] is the part worth understanding even if you never write SQL. It is a Postgres feature where each table carries a rule that is silently ANDed onto every query the database receives. Ours look like this:

CREATE POLICY "SELECT" ON "public"."reportPin"
FOR SELECT USING (
  "companyId" = ANY ((SELECT get_companies_with_employee_role())::text[])
);

So if a query for another company's purchase orders reaches Postgres, it returns zero rows. The tenant boundary is enforced by the database, not by us remembering a .eq(). Service functions still filter by companyId anyway, as a second line of defense.

The escape hatch. Notice bypassRls: true in the Purchase Order action. RLS costs real query time on hot paths, so for trusted employee requests we hand back a service-role [22] client that skips it entirely. That is a deliberate trade, and it moves the responsibility back to us: any loader using bypassRls must re-check the tenant by hand, as the PO detail route does:

if (purchaseOrder.data?.companyId !== companyId)
  throw redirect(path.to.purchaseOrders);

Three kinds of user share one login system, distinguished by a role on their company membership: employee, customer, supplier. Portal users get much narrower permission sets, and routes can demand { role: "employee" }. Separately, share+/ routes are fully unauthenticated; a long unguessable token in the URL is the credential.

3.3 The service layer: four doors to the database

A service function's first argument is always a client, and there is more than one kind. Picking the wrong one is the most common mistake made here.

1. The user-scoped client. What requirePermissions normally returns. Every query runs as that user with RLS applied. Use it unless you have a reason not to.

2. The service-role client (getCarbonServiceRole()) ignores RLS entirely. Needed by background jobs (which have no logged-in user), by share+/ routes, and by bypassRls: true requests. You are now the only thing standing between a bug and a cross-tenant data leak.

3. Kysely is a TypeScript SQL query builder that holds a real connection to Postgres, so it can open a real transaction. This is the answer to the "three inserts aren't atomic" problem from Part 2:

return db.transaction().execute(async (trx) => {
  for (const { id, sortOrder, updatedBy } of updates) {
    await trx
      .updateTable("quoteLine")
      .set({ sortOrder, updatedBy })
      .where("id", "=", id)
      .execute();
  }
});

Three warnings. Kysely throws on failure rather than returning { error }, so wrap it in try/catch. It applies no RLS, so authorize before you call it. And the pool it draws from is small (edge functions ask for exactly one connection, getConnectionPool(1)): if code inside a transaction reaches for a second connection from the same pool, that second request queues behind a transaction that cannot finish until it is served, and the whole thing hangs until the timeout. Do all the work of a transaction on the trx handle you were given, never on db.

4. Edge functions are small programs written for Deno [2], deployed next to the database and called over HTTP [4]. There are about forty in packages/database/supabase/functions/, and they own the genuinely heavy work: MRP [11], production scheduling, posting a shipment or an invoice to the general ledger, CSV import, exporting a whole company. Call one and wait for its answer:

const { data, error } = await client.functions.invoke("post-shipment", {
  body: { type: "post", shipmentId, userId, companyId },
});

They exist for two reasons: they can hold a database connection and run a big multi-thousand-row transaction properly, and they are callable from anywhere (the ERP, the MES, a background job, the public API), not just from a route handler.

"Heavy" here means heavy in SQL, not heavy in the function. Supabase caps an edge function tightly, a couple of hundred megabytes of memory and a short processor-time budget, far below a normal server or an ordinary Lambda, so the useful pattern is to let Postgres do the lifting and keep the function itself thin. Work that is heavy in JavaScript, or that runs for minutes, belongs in an Inngest job instead; work that needs real computing power, like CAD geometry, belongs in the Rust service.

There is also a fifth, narrower door: RPCs, plain Postgres functions called with client.rpc("name", args). About 85 call sites. get_next_sequence from Part 2 is one.

3.4 The database

Postgres 15, wrapped by Supabase [24], an open-source bundle that adds an auto-generated REST API (PostgREST), user authentication, file storage, a realtime change feed, and the edge function runtime, all on top of one ordinary Postgres database.

Rough size, for a sense of scale: 923 migration files, 362 tables, 101 views, 238 database functions, 154 enum types.

Migrations [9]. Every schema change is a timestamped SQL file in packages/database/supabase/migrations/, named YYYYMMDDHHMMSS_kebab-name.sql. Create one with pnpm db:migrate:new <name>, apply with pnpm db:migrate. They are applied in filename order and never edited after merge.

A typical table shows every convention at once:

CREATE TABLE "itarCertification" (
    "id" TEXT NOT NULL DEFAULT id('itc'),
    "companyId" TEXT NOT NULL,
    "createdBy" TEXT NOT NULL REFERENCES "user"("id"),
    "createdAt" TIMESTAMP WITH TIME ZONE NOT NULL DEFAULT NOW(),
    "updatedBy" TEXT REFERENCES "user"("id"),
    "updatedAt" TIMESTAMP WITH TIME ZONE,
    PRIMARY KEY ("id", "companyId"),
    FOREIGN KEY ("companyId") REFERENCES "company"("id") ON DELETE CASCADE
);
ALTER TABLE "public"."itarCertification" ENABLE ROW LEVEL SECURITY;

id('itc') generates a prefixed, sortable, URL-safe id such as itc_3xK9.... The prefix tells you what an id refers to at a glance.

Views [26] are the read path. This is the second-most-important idea in Carbon after RLS.

We write to tables but read from views. A view is a saved query that behaves like a table. purchaseOrders (plural, that is the naming convention) joins in the supplier name, sums the line amounts into orderTotal, converts currency, counts received quantities, and fetches a thumbnail. So the create path never calculates a total: it inserts a header, and the view derives everything else on read.

When a list screen shows a number you cannot find in any table, look for the view. They are defined in migrations, always with WITH (security_invoker = true) so the caller's RLS still applies.

Types are generated, never written. pnpm run generate:types points the Supabase CLI at your local database and writes packages/database/src/types.ts, about 80,000 lines describing every table, view, function and enum. App code imports from it:

import type { Database } from "@carbon/database";
type PurchaseOrderRow = Database["public"]["Tables"]["purchaseOrder"]["Row"];

Run pnpm run generate:types after pulling migrations or writing one, before you typecheck. Half of all "this property doesn't exist" errors are a stale types file.

Logic that lives in Postgres. We push logic into the database when it must hold true for every writer: the ERP, the MES, an edge function, a background job, the public API, or someone running SQL by hand. Two examples:

• update_picking_list_status() is a trigger that recomputes a picking list's header status whenever one of its lines changes. Written from four different places; recomputing it in each caller would drift.
• dispatch_event_batch() is the event trigger from Part 4. It must enqueue in the same transaction as the write that caused it, so a rolled-back write never emits a phantom event.

Files live in Supabase Storage buckets: private is the workhorse (attachments, drawings, quality records), public and avatars are self-explanatory, plus one bucket per company and temp-staging for large CAD uploads.

Part 4: What happens after the write

Back to that queued event. This chain is the piece most likely to surprise you, because none of it is visible from the code that did the write.

It is not every write, though. A table only emits events once a migration has opted it in with attach_event_trigger('tableName') — about ninety have — and even then the trigger enqueues nothing unless that company has an active subscription matching the table and the operation. So the same UPDATE can fan out to six handlers for one company and do absolutely nothing for another.

Three unfamiliar pieces in that chain: PGMQ [16] is the queue, which lives in ordinary Postgres tables so a trigger can write to it inside the same transaction; pg_net [15] is what lets the database make the outbound HTTP ping after that transaction commits; and Inngest [5] is the background job runner.

In plain terms, Inngest works like this: you send it a named event, it calls one of your registered functions over HTTP, and it remembers how far that function got. Each step.run("id", fn) inside a function is a checkpoint: if step four fails and retries, steps one to three are not re-executed; their saved results are handed back. That is why it is used for anything that must survive a crash.

The wiring is three files:

That last row is the surprising one: background jobs run inside the ERP container. Inngest is a scheduler and a memory, not a compute host.

Firing a job on purpose. The automatic trigger path above is for row changes. When code wants to deliberately kick something off, it calls the typed helper trigger() (about 108 call sites):

await trigger("notify", {
  event: NotificationEvent.JobAssignment /* ... */,
});

Event names are always carbon/<something>.

Scheduled work comes from two places. Inngest crons handle app-level jobs: MRP every three hours, notification digests every fifteen minutes, exchange rates and audit archiving nightly, workflow-run cleanup at 04:00. All of them are UTC, and any job that needs a company's local day computes it inside the run. Database-level maintenance uses pg_cron [14] instead, for refreshing cached aggregate tables and sweeping the event queue.

Notifications fan out from one job (packages/jobs/.../notifications/notify.ts) to three destinations: in-app rows (which the topbar picks up live over Realtime), email via Resend, and Slack. packages/notifications itself is only the list of event types; it sends nothing.

Part 5: The other engines

Workflows: the customer's own automations

Carbon ships a drag-and-drop canvas where a customer builds "when a quote is accepted, notify the account manager and create a job". Confusingly these are also called workflows, and they are a completely different thing from Inngest jobs:

They reuse the event pipeline from Part 4, the WORKFLOW branch. A matcher takes the row change, works out which catalog events it corresponds to, finds subscribed workflows, and queues one run each. packages/workflows holds the pure definition/validation logic and touches nothing; packages/jobs/src/workflows/ holds the runtime that actually does things. Every run and every step is recorded, so a customer can open a run and see what happened.

The Assembler: the Rust service

apps/assembler plus crates/ is a Rust HTTP service that converts CAD files (STEP) into web-renderable 3D (GLB) and plans a collision-free disassembly sequence for assembly instructions. It wraps two C++ libraries (OpenCASCADE for geometry, FCL for collision). packages/viewer renders its output in the browser. It is entirely optional; everything else boots without it.

It is not a call-and-wait service. A job is submitted and answered later: the caller posts the work and gets a job id back, then waits for a callback, with polling as a fallback. Files never travel through the ERP. The caller hands over signed URLs, one to read the CAD file from and one to write the result to, and the Rust service streams straight to and from the storage bucket itself; it holds no database credentials and can see nothing else. Redis is where job state and finished-result pointers live, which is why the service refuses to start without it.

Part 6: The repo map

Applications (apps/, plus docs/ at the root):

Libraries (packages/). The ones you will actually touch are near the top:

Inside an ERP module (there are eighteen, under apps/erp/app/modules/{module}/):

purchasing/
├── purchasing.models.ts    zod schemas and the types derived from them
├── purchasing.service.ts   every database operation for this module
├── purchasing.server.ts    server-only helpers (optional)
├── types.ts                shared types
├── index.ts                barrel, import from "~/modules/purchasing"
└── ui/                     React components, grouped by feature

Part 7: Where it all runs

The same code base runs in three shapes: on a laptop, on the cloud Carbon operates for customers, and on a server a customer owns. Nothing in the application knows which one it is in; the difference is entirely in configuration.

7.1 On a laptop

pnpm dev runs crbn up, a custom CLI that boots an eleven-container Docker stack, waits for Postgres, applies migrations, regenerates the database types, seeds a test user, and starts the apps. The apps themselves run as ordinary Node processes on the host, not in containers, which is what makes hot reload fast.

Each Git worktree (a second checkout of the same repository) gets its own ports, its own database and its own freshly minted keys, so several branches can run at once. Redis is the one exception: a single shared container, with each worktree given its own numbered slot inside it.

7.2 The cloud Carbon runs

There are two hosting paths, and both are live: the shared cloud on Vercel, and dedicated per-customer installations on AWS.

The shared cloud runs on Vercel. app.carbon.ms (ERP), mes.carbon.ms (MES), learn.carbon.ms (academy) and docs.carbon.ms all resolve to Vercel, as does a separate EU region (app.eu.carbon.ms, mes.eu.carbon.ms) served by its own pair of projects. Each React Router app opts in through its react-router.config.ts, which enables vercelPreset() from @vercel/react-router when the VERCEL environment variable is present and is a no-op everywhere else — so the same source builds for Vercel or for a container without a branch in the code. Deploys are driven by Vercel's own Git integration rather than by a workflow in this repository.

Dedicated installations run on AWS. The ERP and MES are also packaged as Docker images that run on ECS Fargate [3], which is Amazon running your container for you without any server to look after. Each service sits behind its own load balancer on port 3000, is checked for life at /health, and scales between one and ten copies on processor and memory pressure. All of that is described in sst.config.ts (SST [23] is infrastructure-as-code, where you write cloud resources in TypeScript instead of clicking in a console). The AWS with SST recipe is the same stack, run by you. itar.carbon.ms is one of these: it resolves to a load balancer in AWS GovCloud, not to Vercel.

The part that surprises people: that path is not one big shared installation. There is a workspaces table, and on every deploy ci/src/deploy.ts walks it and runs sst deploy --stage prod once per row, each with that customer's own AWS account, region, domain, certificates, Supabase project and Redis. So Carbon separates customers twice over: by companyId on every row inside one installation (Part 3), and by giving a customer their own installation entirely. Adding a customer means adding a workspace row. A row missing a required field is skipped with a log line rather than failing the deploy, so a tenant can silently not deploy.

Postgres is managed Supabase on both paths. There is one Lambda: the Assembler ships as a single image that runs either as a Lambda function behind an API gateway (the default) or as a container, which is why 3D conversion can be turned on per customer without changing the main stack.

7.3 On a customer's own server

contrib/deploying/simple-docker-caddy/ holds a complete self-hosted stack: a Docker Swarm file that brings up Postgres, the Supabase services, Redis, Inngest and both apps on one machine, with Caddy in front as the only thing exposed to the internet. Secrets are Swarm secrets rather than environment variables in a file. Migrations run as a throwaway one-shot container before the apps roll. scripts/backup.sh takes a database dump plus the uploaded files (see backups), and scripts/harden.sh does the basic firewall setup.

Which features exist is decided by one variable, CARBON_EDITION: community, cloud, enterprise or test. What each of those buys you is the licensing model. Self-hosting defaults to community; the cloud fan-out sets enterprise.

7.4 How a merge becomes production

The Vercel side deploys itself: pushing to main triggers a build in each Vercel project through its Git integration, with no workflow in this repository involved. Everything below is the AWS side — four GitHub Actions workflows, deliberately independent of each other rather than one pipeline:

Two consequences worth knowing. First, check.yml never builds the apps, so a pull request can go green and still break the image build on merge. Second, migrations and app code deploy in parallel with no ordering between them, so a migration and the code that depends on it can land seconds apart in either order; write migrations that are safe against the previous version of the code.

There is no version tagging and no rollback button. An image is identified by its commit, so rolling back means redeploying an older commit. Configuration is not held in a secrets manager: values are read from the workspaces table at deploy time and set as plain environment variables on the container.

7.5 Knowing what is happening

Observability is deliberately thin. Logs go through LogTape: color on a laptop, one JSON line per entry in production, with sensitive field names blanked out and a request id threaded through everything so one page load can be followed end to end. There is no log shipping of its own, so logs are whatever the platform collects: CloudWatch on AWS, docker service logs when self-hosted. PostHog covers product analytics and is switched off entirely in controlled (ITAR) environments. There is no Sentry and no distributed tracing.

Part 8: There's a bug, where do I look?

Start from what the user saw and walk inwards. This mirrors the order things happen.

A few specific traps, each of which has caught someone out:

• TypeScript says a column doesn't exist. Run pnpm run generate:types. Your generated types are behind your migrations.
• A query returns nothing but the row is definitely there. RLS. Either the companyId is wrong or you are using a user-scoped client where you needed service role.
• A write half-succeeded. Chained supabase-js calls are not a transaction. Look for a manual rollback that didn't cover the failure.
• A number on a list screen is wrong. It is almost certainly computed in a view.

Part 9: House rules

The full list is in AGENTS.md at the repo root. The ones that cause the most damage when broken:

• pnpm, never npm.
• Never use JavaScript Date for parsing, formatting or arithmetic. Use @internationalized/date and @carbon/utils. A build check enforces this. Timezones in a manufacturing schedule are not cosmetic.
• Never hand-edit the generated database types. Regenerate them.
• Never skip companyId scoping, even though RLS would probably catch it.
• Never chain supabase-js writes and call it a transaction. Use Kysely, or an RPC.
• Never query inside a loop. Collect the ids and make one .in() call.
• One {module}.service.ts and one {module}.models.ts per module. Don't scatter them.
• Run pnpm run generate:types after any migration, before typechecking.

Useful commands:

pnpm dev                                        # boot everything
pnpm db:migrate:new <name>                      # create a migration
pnpm db:migrate                                 # apply migrations
pnpm run generate:types                         # regenerate database types
pnpm exec turbo run typecheck --filter=erp      # typecheck one package
pnpm run lint                                   # Biome
pnpm run test                                   # unit tests

Typechecking the whole repo at once runs out of memory, so always use --filter.

Glossary

Numbered so the body can point at them. Alphabetical.

1. Action: the function a route file exports to handle a form submission. Runs on the server only, never shipped to the browser.

2. Deno: an alternative JavaScript runtime to Node.js. Our edge functions are written for it, which is why they use https:// imports instead of node_modules.

3. ECS Fargate: Amazon's service for running Docker containers without managing the servers underneath. The ERP and MES run here in production.

4. Edge function: a small server-side program deployed next to the database, called over HTTP and awaited like a normal function. Ours are written for Deno.

5. Inngest: the background job runner. Send it an event; it calls your function over HTTP and remembers each completed step, so a retry resumes rather than restarts.

6. Kysely: a TypeScript SQL query builder. Unlike supabase-js it holds a real database connection, so it can run real transactions. It also bypasses RLS.

7. Lingui: the translation library. You mark strings in code; it extracts them into per-language files for translators.

8. Loader: the function a route file exports to fetch the data its page needs. Runs on the server only.

9. Migration: one timestamped SQL file describing a schema change. The full ordered set of them is the schema; there is no separate schema file.

10. Monorepo: one Git repository holding several applications and shared libraries that are versioned and released together.

11. MRP: Material Requirements Planning. Works out what to buy and make, and when, given demand and current stock. Runs as an edge function.

12. Multi-tenancy: one database and one running application serving many separate customer companies, with each company's data invisible to the others.

13. nanostores: a very small state library. We use it for reference lists (items, customers, suppliers) that many screens read and Realtime keeps fresh.

14. pg_cron: a Postgres extension that runs SQL on a schedule, inside the database. Used for cache refreshes and queue sweeping.

15. pg_net: a Postgres extension that lets the database make outbound HTTP calls. We use it for exactly one thing: pinging the event queue awake after a commit.

16. PGMQ: a message queue implemented in ordinary Postgres tables. Lets a database trigger enqueue work inside the same transaction as the write that caused it.

17. Postgres: the relational database everything in Carbon is built on. Version 15.

18. PostgREST: a service that exposes Postgres tables and views as a REST API. Every client.from(...).select(...) is a PostgREST call, not raw SQL.

19. Radix UI: an unstyled, accessible React component library. Our design system adds Tailwind styling on top of it.

20. RLS (Row Level Security): a Postgres feature where a per-table rule is automatically added to every query. It is what keeps one company's data invisible to another.

21. RPC: here, calling a function defined inside Postgres from application code, via client.rpc("name", args).

22. Service role: a database credential that bypasses all RLS. Powerful; use carefully.

23. SST: infrastructure-as-code for AWS, written in TypeScript. sst.config.ts defines our production cluster.

24. Supabase: an open-source bundle around Postgres: REST API, auth, storage, realtime and edge functions. We run its containers locally and use the managed version in production.

25. Turborepo: the build orchestrator that knows which packages depend on which, so pnpm build only rebuilds what changed.

26. View: a saved query that behaves like a read-only table. Carbon writes to tables and reads from views; computed values like order totals live in the view.

27. Vite: the build tool and dev server behind all our React apps.

28. zod: a schema library. Describe data once, get validation and a TypeScript type from the same definition.

29. zustand: a small React state library. We use it only for throwaway UI state, like whether a modal is open.

Related
